TSS1511 General Pump

TS1511 General PUMP/WS151 has been changed to a TSS1511

Part Number: 2002
Hotsy Part Number: 5-2332, TS1511, TS1511L, 8.715-355.0, 87153550, 87026500, 830162, new number 8.753-483.0

FEATURES:
The preferred pump frame in the cleaning industry. Forged brass manifold with an exclusive lifetime warranty.

• Large capacity, die cast, anodized aluminum oil bath crankcase
• Over sized connecting rods for maximum life
• Heavy duty tapered roller bearing
• Solid ceramic plungers with continuously lubricating packings
• Unitized stainless steel inlet and discharge valves
• Available in left handed "L" version

SPECIFICATIONS

• Triplex Plunger Pump
• Right Hand Shaft (Left available just call)
• Maximum Volume: 4 GPM
• Maximum Discharge Pressure: 3500 PSI
• Maximum Inlet Pressure: 125 PSI
• Maximum Pump Speed: 1450 RPM
• Bore: .787" (20mm)
• Stroke: .472" (12mm)
• Crankcase Capacity: 40.6 oz. Non-detergent SAE 30W oil
• Maximum Fluid Temperature: 165 degrees F.
• Inlet Port Thread: 1/2" FPT
• Discharge Port Thread: 3/8" FPT
• Shaft Diameter: .945" (24mm)
• Dimensions: 12.2" x 9.2" x 6.9"
• Weight: 32 lbs.

Lubrication: fill the crankcase to dot on oil gauge window per specifications with Non-detergent SAE 30W oil. Change oil after 40 hour break-in period, then every three (3) months or 500 hour intervals thereafter.

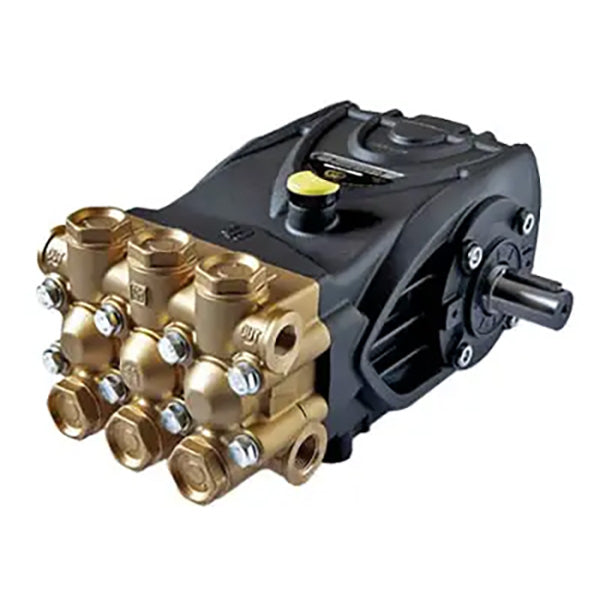

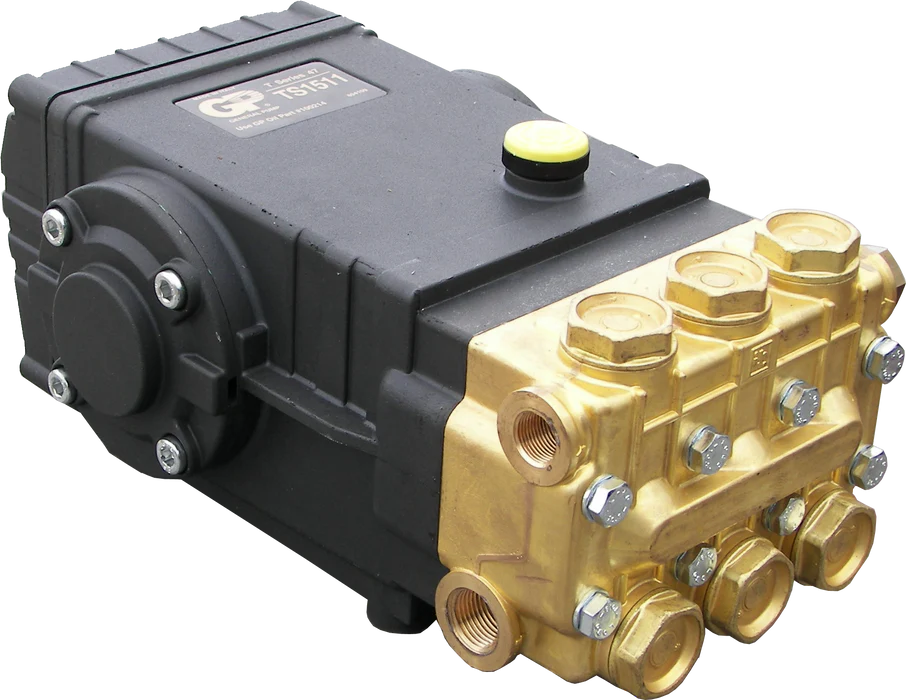

*same pump, picture one new style, picture two old style
