LM4035R.3 Pump

LM4035R.3 Pump

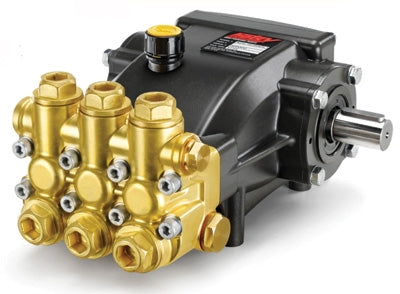

"LM" Series Tri-plunger belt drive pump.

Part Numbers: 8.904-734.0, 89047340, 8.751-180.0, 87511800, 8.750-758.0, 87507580. 8.751-200.0, 87512000, 87511690, 8.751-169.0 HM4035, HM4035R, 5-1220, HM4035-1, HM4035H-1, LM4035R.1, LM4035R.2, LM4035R.3, SM4035R.1, SM4035R.2, SM4035R.3, KM4035R.1, KM4035R.2, KM4035R.3, GM4035R.3

• 4.8 GPM, 3500 PSI
• 11 HP, 1500 RPM
• 24mm right shaft
• RIGHT HAND Shaft
• Designed and engineered exclusively for pressure washers.
• 5-year limited warranty
• Forged brass manifold with an exclusive lifetime warranty.
• Large capacity, die-cast, anodized aluminum oil-bath crankcase with precision rod guides.
• Over-sized connecting rods for maximum life.
• Heavy-duty tapered roller bearing.
• Solid ceramic plungers with mirror finish and corrosion resistance.
• Stainless steel inlet and discharge valve assemblies.
• Forged valve caps with recessed O-rings
• Dacromet coated manifold bolts for extra corrosion resistance.
• Parker "U" Seals for long life performance.

Download Breakdown
