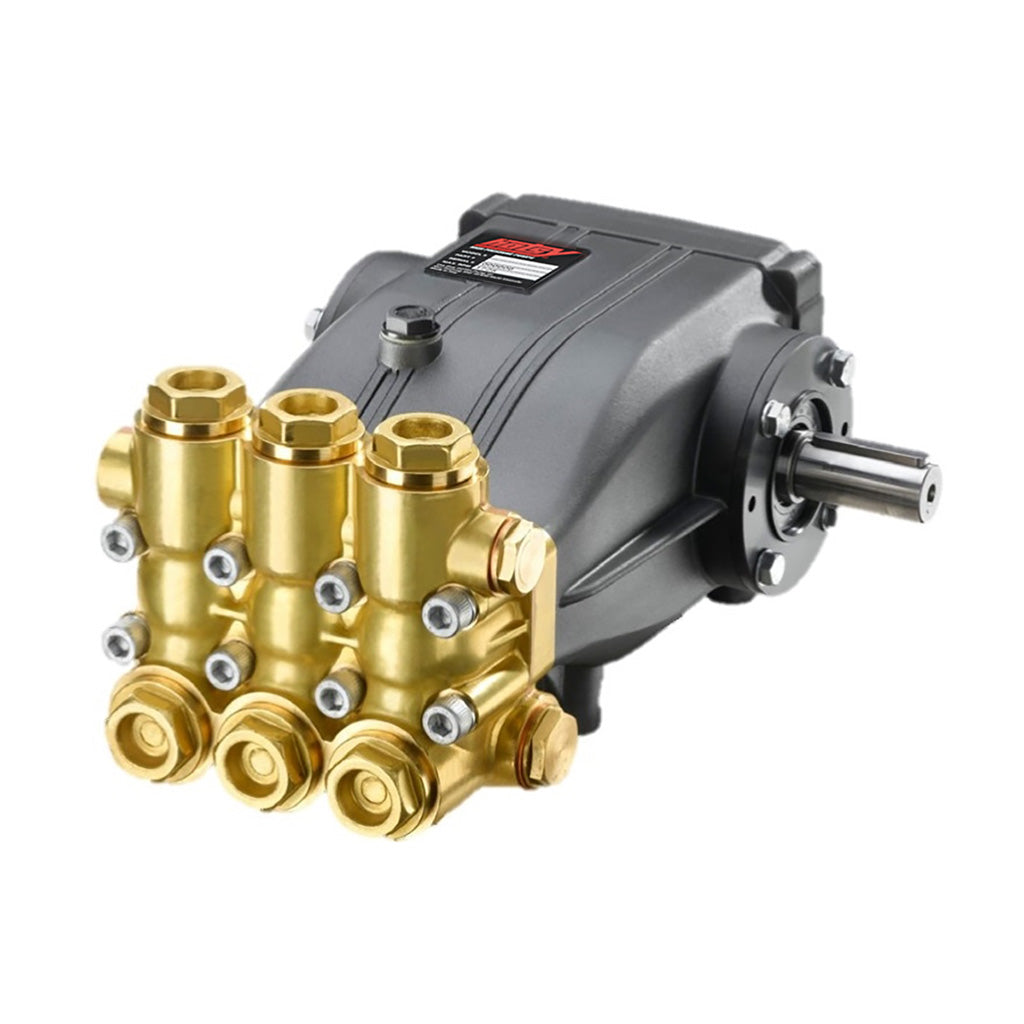

HX9536R.2 (HC950R or HX8030R) Pump Hotsy Hawk

Hotsy HX9536R.2 Pump

Hotsy "HX" Series Tri-plunger belt drive pump.

Hotsy Part Numbers: 8.920-585.0, 8.904-743.0, 5-1242, 89205850, 89047430, 8.920-597.0, 89205970

HC950R and HX8030R has changed to HX9536R.2,

LX9536R.2, GX9536R.2, KX9536R.2

• 9.5 GPM, 3625 PSI
• 16.4 HP, 1740 RPM
• 25mm right shaft
• RIGHT HAND Shaft
• Designed and engineered exclusively for Hotsy pressure washers.
• 7-year limited warranty
• Forged brass manifold with an exclusive lifetime warranty.
• Large capacity, die-cast, anodized aluminum oil-bath crankcase with precision rod guides.
• Over-sized connecting rods for maximum life.
• Heavy-duty tapered roller bearing.
• Solid ceramic plungers with mirror finish and corrosion resistance.
• Stainless steel inlet and discharge valve assemblies.
• Forged valve caps with recessed O-rings
• Dacromet coated manifold bolts for extra corrosion resistance.
• Parker "U" Seals for long life performance.

Download Breakdown
