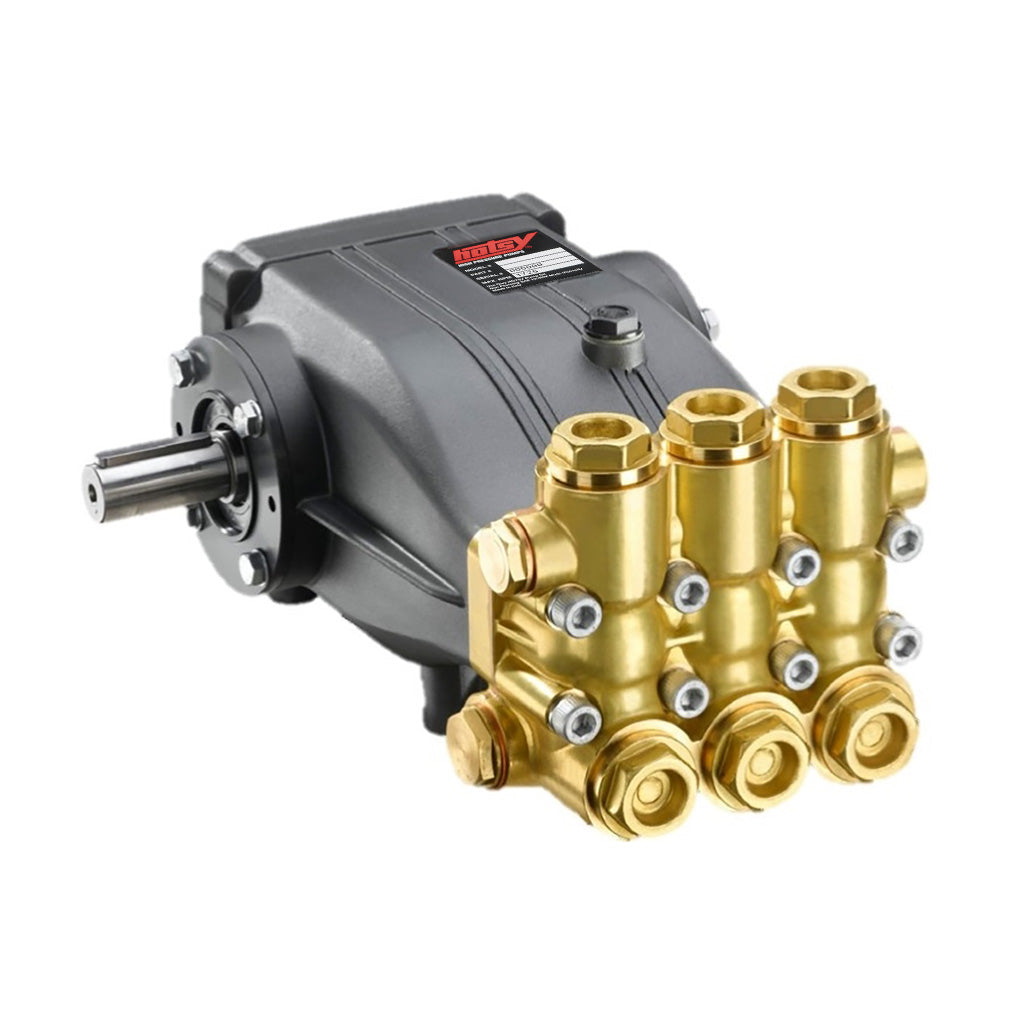

HX1036L.2 (HX1025L) Pump Hotsy Hawk

Hotsy HX1036L.2 Pump

Hotsy "HX" Series Tri-plunger belt drive pump.

Hotsy Part Numbers: 5-1248, 8.904-746.0, 8.920-588.0, 89205880, 89047460, 8.920-600.0, 89206000

HX1025L has changed to HX1036L.2,

LX1036L.2, GX1036L.2, KX1036L.2

• 10.4 GPM, 3625 PSI
• 23.6 HP, 1740 RPM
• 25mm Left shaft
• LEFT HAND Shaft
• Designed and engineered exclusively for Hotsy pressure washers.
• 7-year limited warranty
• Forged brass manifold with an exclusive lifetime warranty.
• Large capacity, die-cast, anodized aluminum oil-bath crankcase with precision rod guides.
• Over-sized connecting rods for maximum life.
• Heavy-duty tapered roller bearing.
• Solid ceramic plungers with mirror finish and corrosion resistance.
• Stainless steel inlet and discharge valve assemblies.
• Forged valve caps with recessed O-rings
• Dacromet coated manifold bolts for extra corrosion resistance.
• Parker "U" Seals for long life performance.

Download Breakdown
