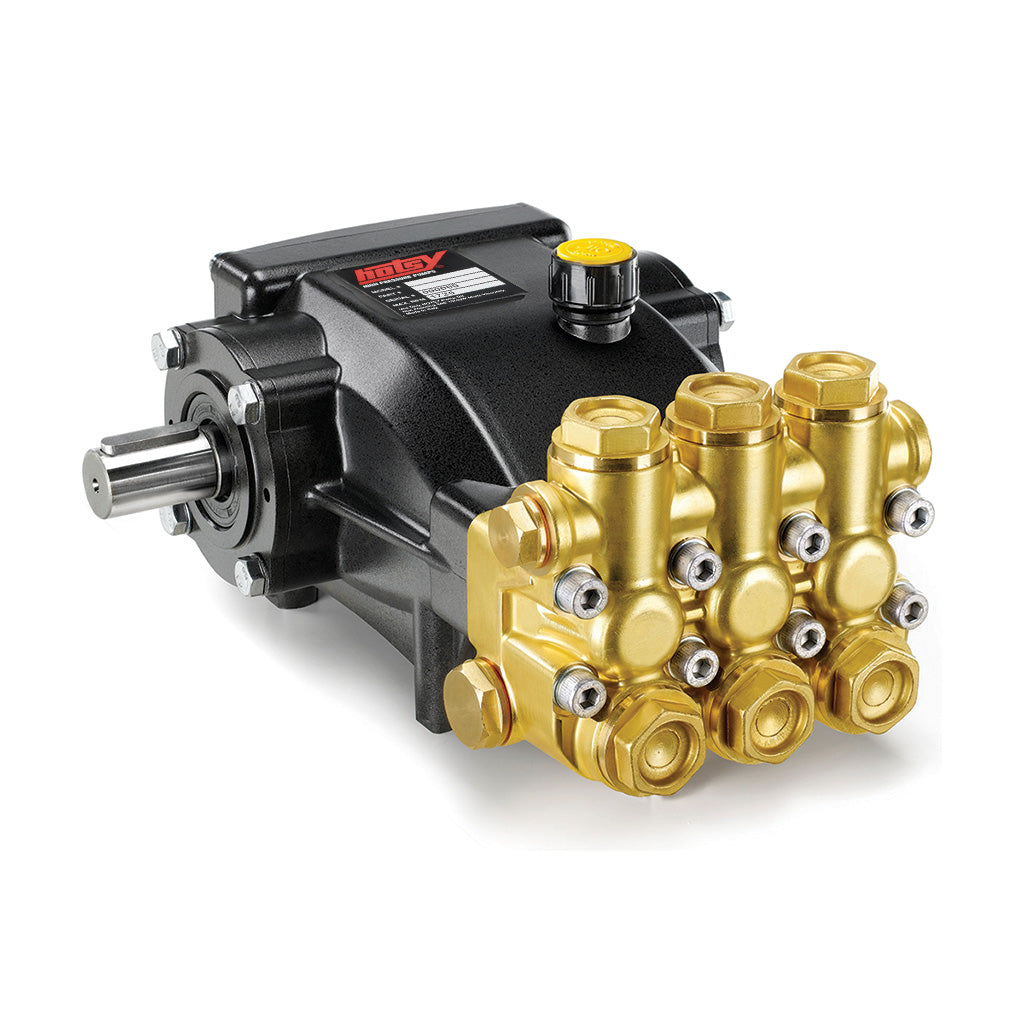

HM4030L.3 Pump Hotsy Hawk

Hotsy HM4030L.3 Pump

Hotsy "HM" Series Tri-plunger belt drive pump.

Hotsy Part Numbers: 8.923-166.0, 89231660, HM4030, HM4030R, 5-1220, HM4030-1, HM4030H-1, KM4030L.3, LM4030L.3, SM4030L.3,

• 4 GPM, 3000 PSI
• 11 HP, 1000 RPM
• 24mm right shaft
• LEFT HAND Shaft

Hotsy has redesigned the pump! When you order this pump you will get the upgraded pump HH4030L.3 with the NESTechnology part # 89231660.

• Designed and engineered exclusively for Hotsy pressure washers.
• 7-year limited warranty
• Forged brass manifold with an exclusive lifetime warranty.
• Large capacity, die-cast, anodized aluminum oil-bath crankcase with precision rod guides.
• Over-sized connecting rods for maximum life.
• Heavy-duty tapered roller bearing.
• Solid ceramic plungers with mirror finish and corrosion resistance.
• Stainless steel inlet and discharge valve assemblies.
• Forged valve caps with recessed O-rings
• Dacromet coated manifold bolts for extra corrosion resistance.
• Parker "U" Seals for long life performance.

Download Breakdown
