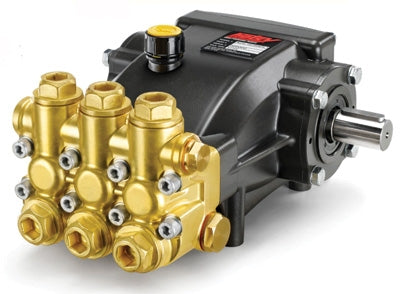

HHC500 Hawk Pump

PUMP, HOTSY HHC500R, HHC506R, HC506R, HC500AR SINGLE SHAFT Right Hand

Hotsy Part Numbers: 5-1807, 8.904-914.0, 89049140 has been replaced by part # 8.715-271.0 HC500AR New Part # 87507490

• 4.8 GPM, 3000 PSI, 1725 RPM, 22 mm Shaft

Hotsy has changed the pump number you will now get Hotsy pump # HM4035R.3

• 4.8 GPM, 3500 PSI
• 11.5 HP, 1500 RPM, 24mm Shaft (Pulley Bushing H x 24mm will come with this order so it will fit perfect)


Hotsy has redesigned the pump! When you order this pump you will get the upgraded pump HM4035R.3 with the NESTechnology. Part # 8.751-180.0 you will also receive H x 24 bushing Part # 87111210 and (2) 1/2" x 3/8" Bushing Reducers for FREE

• Designed and engineered exclusively for Hotsy pressure washers.
• 7- year limited warranty
• Forged brass manifold with an exclusive lifetime warranty.
• Large capacity, die-cast, anodized aluminum oil-bath crankcase with precision rod guides.
• Over-sized connecting rods for maximum life.
• Heavy-duty tapered roller bearing.
• Solid ceramic plungers with mirror finish and corrosion resistance.
• Stainless steel inlet and discharge valve assemblies.
• Forged valve caps with recessed O-rings
• Dacromet coated manifold bolts for extra corrosion resistance.
• Parker "U" Seals for long life performance.

The differences:

(1) Crankcase Oil Capacity 23.6 oz. (old was 23.3 oz)

(2) Inlet Port Thread 1/2" (old was 3/8")

(3) Shaft Diameter 24 mm (old was 22mm)

(4) Height 5.7 in (old was 5.4 inches)

*** NOTE: when you order this pump you will also receive a bushing H x 24

Pump Packing Kits for HC500, HC500R, HC500A, HC506R, HHC506R.1, HHC506, HHC506R.2:

OLD V STYLE Packing kit only Part # 877654

NEW U STYLE Packing kit only Part # 87253620 (will only fit if you have new style brass)

OLD V STYLE Complete Packing Kit with Brass Part # 753014 (when ordering order 3 each to do 1 pump)

NEW U STYLE Complete Packing Kit with Brass Part # 87254070 (when ordering order 3 each to do 1 pump)

Check Valve Kit Part # 877648 (order 6 each to do one pump)

Piston Kit or Ceramic Sleeve Part # 877656 (one kit will do one piston order 3 to do 1 pump)

Call for discounted PRICING!
