H300 Pump Hawk

Hotsy H300 Pump HH306R
Hotsy "H"Series Tri-plunger belt drive pump.

Hotsy Part Numbers 8.715-244.0, 5-1864, 87152440, H300 changed to HH306R Hotsy Part numbers 8.715-269.0, 5-1864, 830126, 87152690

• 4.0 GMP, 3000 PSI
• 2 HP, 1200 RPM
• 22mm Right Shaft

HM4030R.3

Hotsy has redesigned and/or replaced the Pump! When you order this pump you will get the upgraded pump HM4030R.3 with the NESTechnology. Part # 8.923-165.0

• 4.0 GPM, 3000 PSI
• 2 HP, 1000 RPM
• 24mm Shaft

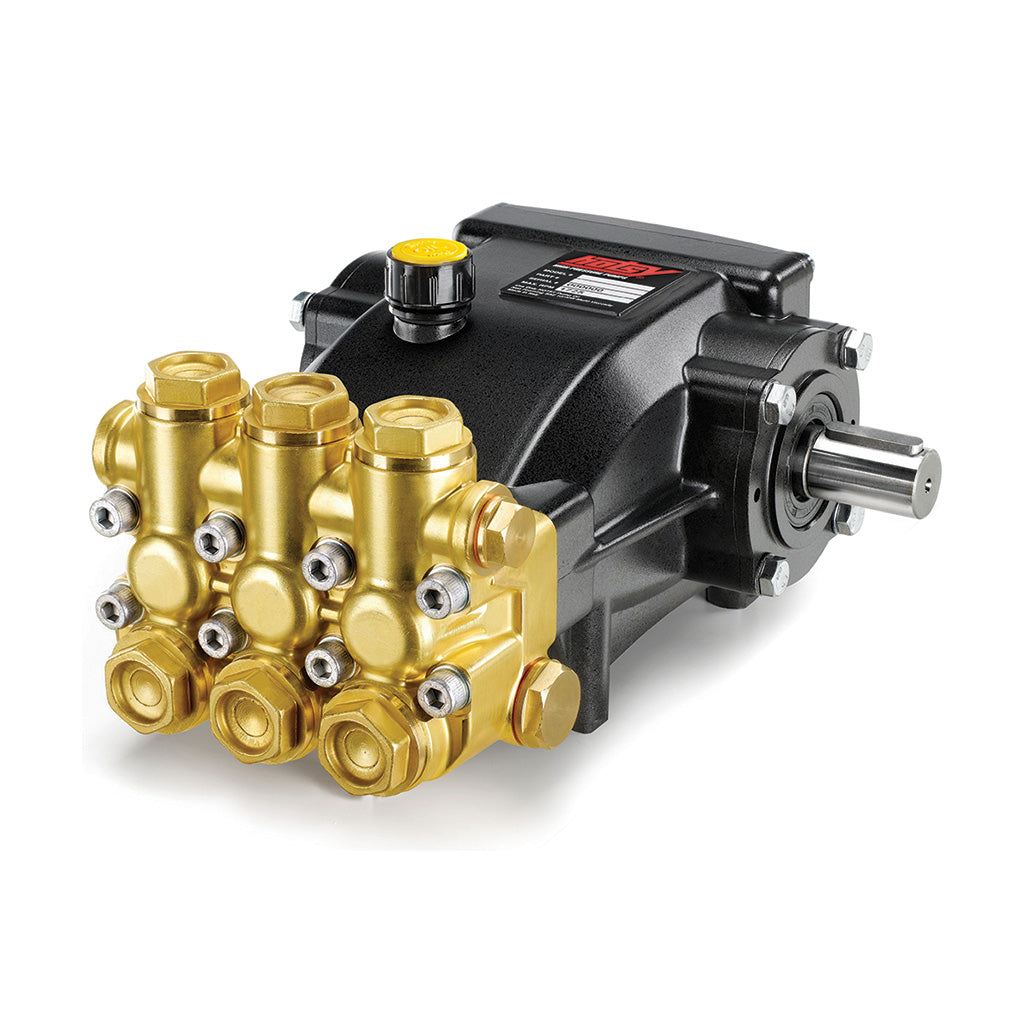

** old style pump pictured

• Designed and engineered exclusively for Hotsy pressure washers.
• 7-year limited warranty
• Forged brass manifold with an exclusive lifetime warranty.
• Large capacity, die-cast, anodized aluminum oil-bath crankcase with precision rod guides.
• Over-sized connecting rods for maximum life.
• Heavy-duty tapered roller bearing.
• Solid ceramic plungers with mirror finish and corrosion resistance.
• Stainless steel inlet and discharge valve assemblies.
• Forged valve caps with recessed O-rings
• Dacromet coated manifold bolts for extra corrosion resistance.
• Parker "U" Seals for long-life performance.

 The Differences:

(1) Crankcase Oil Capacity 23.6 oz. (old was 23.3 oz)

(2) Inlet Port Thread 1/2" (old was 3/8")

(3) Shaft Diameter 24 mm (old was 22mm)

(4) Height 5.7 in (old was 5.4 inches)

*** NOTE: when you order this pump you will also receive a bushing H x 24

Call for Discounted Pricing!
